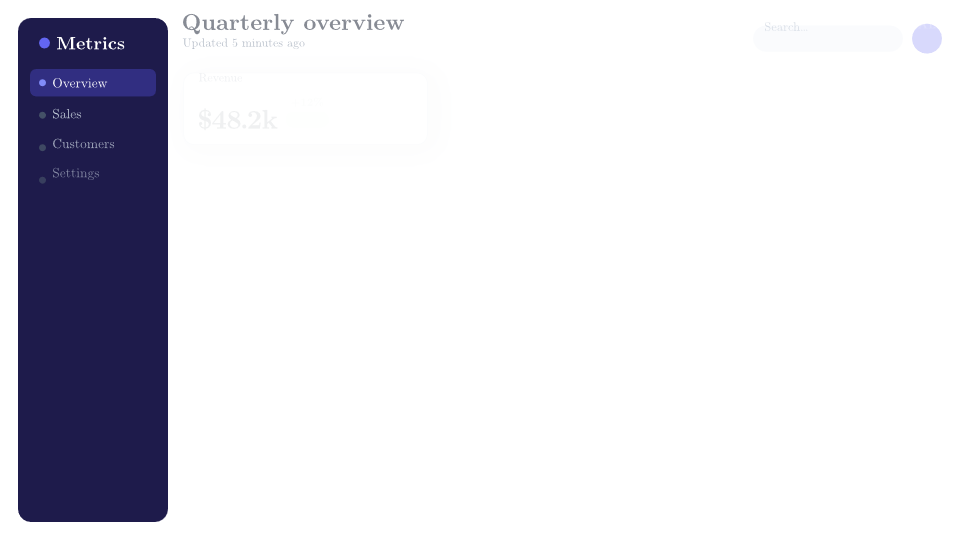

Dashboard

An analytics dashboard built only from boxes, revealed piece by piece and updated live.

Dashboard
View on GitHubgaanim examples/showcase/dashboard.py
Code · 127 lines
"""An analytics dashboard built only from boxes, revealed piece by piece and updated live.

A sidebar, a header, three KPI cards, a bar chart and a list of recent orders
are rows and columns of boxes on the paper theme: no coordinates anywhere.
The dashboard reveals itself piece by piece and the bars rise. Then a new
order arrives: the list makes room for it, the KPIs change and Sunday's bar
grows and lights up, each change reflowing the boxes around it.
"""

import os

from gaanim import BoxStyle, Scene

scene = Scene(theme="paper")
L = scene.layout

INK = "#0f172a"
SLATE = "#64748b"
LINE = "#e2e8f0"
NIGHT = "#1e1b4b"
INDIGO = "#6366f1"
LAVENDER = "#a5b4fc"

L.classes(
    panel=BoxStyle(padding=("28px", "32px"), gap="16px", radius="22px", background="white", border=LINE,
                   border_width="2px", shadow={"color": "#0f172a14", "y": "-6px", "blur": "24px"}),
    caption=BoxStyle(font_size="24px", color=SLATE),
    heading=BoxStyle(font_size="30px", weight=700, color=INK),
    nav=BoxStyle(direction="row", gap="14px", padding=("12px", "18px"), radius="12px", font_size="27px",
                 color="#cbd5e1", align="center", width="fill"),
)


def dot(color, size="14px"):
    return L.box(width=size, height=size, radius="full", background=color)


def badge(text, up=True):
    """A pill with the change of a KPI, green when it is good news."""
    return L.box(text, font_size="22px", weight=700, padding=("4px", "12px"), radius="full",
                 background="#dcfce7" if up else "#fee2e2", color="#166534" if up else "#991b1b")


def kpi(label, value, delta, up=True):
    """A KPI card around ``value``, a box or a rolling number."""
    return L.box(L.box(label, class_="caption"), L.row(value, badge(delta, up), gap="16px", align="center"),
                 class_="panel", grow=1)


def order(name, amount, **style):
    return L.row(L.box(name, font_size="26px", **style), L.box(amount, font_size="26px", weight=700, **style),
                 justify="between", width="fill")


sidebar = L.column(
    L.row(dot(INDIGO, "22px"), L.box("Metrics", font_size="36px", weight=700, color="white"), gap="14px",
          align="center", padding=("6px", "18px", "22px")),
    L.box(dot("#818cf8"), "Overview", class_="nav", background="#312e81", color="white"),
    L.box(dot("#475569"), "Sales", class_="nav"),
    L.box(dot("#475569"), "Customers", class_="nav"),
    L.box(dot("#475569"), "Settings", class_="nav"),
    gap="10px", padding="24px", width="300px", height="fill", background=NIGHT, radius="26px",
)
header = L.row(
    L.column(L.box("Quarterly overview", font_size="46px", weight=700, color=INK),
             L.box("Updated 5 minutes ago", class_="caption"), gap="4px"),
    L.row(L.box("Search…", font_size="25px", color="#94a3b8", padding=("12px", "24px"), radius="full",
                background="#f1f5f9", width="300px"),
          L.box("AL", font_size="24px", weight=700, color="white", background=INDIGO, radius="full",
                width="60px", height="60px", align="center", justify="center"),
          gap="18px", align="center"),
    justify="between", align="center", width="fill",
)
# Rolling numbers count to new values like an odometer.
revenue_number = scene.viz.rolling_number(48.2, decimals=1, prefix="$", suffix="k", font_size=0.45, weight=700,
                                          color=INK)
orders_number = scene.viz.rolling_number(1284, group_separator=",", font_size=0.45, weight=700, color=INK)
kpis = L.row(
    kpi("Revenue", revenue_number, "+12%"),
    kpi("Orders", orders_number, "+4%"),
    kpi("Returns", L.box("2.1%", font_size="54px", weight=700, color=INK), "−0.3%", up=False),
    gap="24px", width="fill",
)

# Bar heights are shares of the row of bars, which starts flat at the bottom
# of the plot area and rises to fill it once the dashboard is in place.
HEIGHTS = [40, 61, 49, 80, 69, 92, 84]
bars = L.row(*[L.box(width="fill", height=f"{height}%", radius="10px", background=LAVENDER) for height in HEIGHTS],
             gap="16px", align="end", width="fill", height="4%")
plot = L.column(bars, justify="end", width="fill", grow=1)
days = L.row(*[L.box(day, class_="caption", width="fill", align="center") for day in "MTWTFSS"],
             gap="16px", width="fill")
chart = L.box(L.box("Sales by day", class_="heading"), plot, days, class_="panel", grow=2, height="fill")
CUSTOMERS = [("Lucía P.", "$320"), ("Marco T.", "$85"), ("Ana R.", "$1,040"), ("Kenji M.", "$210"),
             ("Priya S.", "$560")]
orders = L.box(L.box("Recent orders", class_="heading"), *[order(name, amount) for name, amount in CUSTOMERS],
               class_="panel", grow=1, height="fill")
content = L.column(header, kpis, L.row(chart, orders, gap="24px", width="fill", grow=1),
                   gap="26px", grow=1, height="fill")
app = L.row(sidebar, content, gap="30px", padding="36px", width="fill", height="fill")

# reveal() shows every piece in draw order: backgrounds and counters fade and
# texts rise.
scene.play(app.reveal(each=0.015, duration=0.35, rules="fade"))
# set() with a duration animates the reflow: the row grows and its bars with it.
bars.set(height="100%", duration=0.9)
scene.wait(0.6)
scene.stop("overview")

# A new order: the list makes room at the top, the KPIs count up and
# Sunday's bar grows past Saturday's and lights up, all at once
# (advance=False starts the next change at the same time).
new = order("New: Sofía G.", "$640", color="#3730a3")
new.set(padding=("10px", "14px"), radius="12px", background="#e0e7ff")
orders.add(new, at=1, duration=0.8, advance=False)
bars[-1].set(height="100%", background=INDIGO, duration=0.8, advance=False)
for counter in (revenue_number, orders_number):
    counter.fill(INDIGO)
scene.play([revenue_number.count_to(48.8, duration=0.8), orders_number.count_to(1285, duration=0.8)])
scene.wait(1.0)
scene.stop("new order")

if snapshots := os.environ.get("GAANIM_SNAPSHOTS"):
    scene.snapshots(snapshots, [0.4, 0.9, 1.6, 2.4, 3.1, 3.5, 4.5])
else:
    scene.render()

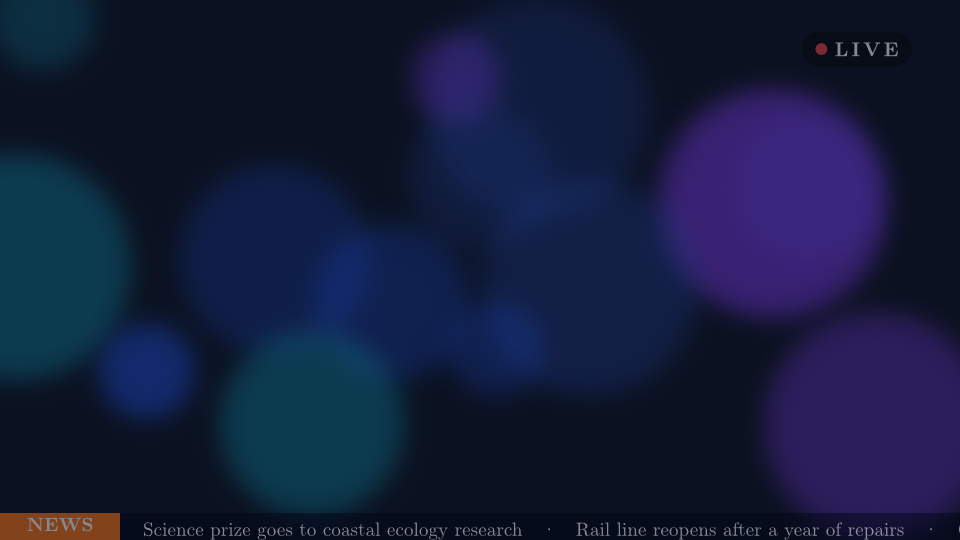

Lower third

A broadcast lower third, a live badge and a news ticker over drifting footage.

Lower third
View on GitHubgaanim examples/showcase/lower_third.py
Code · 101 lines
"""A broadcast lower third, a live badge and a news ticker over drifting footage.

The footage is free drawables that no layout owns: soft lights drifting
behind everything. One zone template divides the frame for the whole
programme, title-safe: the lower third sits in the bottom band, the live badge
in the top-right corner and the ticker along the bottom edge. The card slides
in with its accent bar, its caption is retyped when the story changes, and it
slides away while the ticker keeps crawling.
"""

import os

from gaanim import Anchor, Direction, Easing, Scene, Zones, component

scene = Scene(background="#0b1120")
L = scene.layout

ORANGE = "#f97316"
WHITE = "#ffffff"
SILVER = "#cbd5e1"
GLASS = "#0f172ae6"
LENGTH = 7.5

# The footage: blurred lights at seeded places, drifting slowly to the right.
rng = scene.random(seed=7)
lights = []
for index in range(14):
    color = ("#1e3a8a", "#1d4ed8", "#0e7490", "#7c3aed")[index % 4]
    light = scene.geometry.circle(rng.uniform(0.5, 1.8)).fill(color).opacity(rng.uniform(0.2, 0.45))
    lights.append(light.blur(0.25).move_to(rng.uniform(-9, 7), rng.uniform(-3, 4.5)))
scene.launch([light.animate.shift_by(1.2 + 0.1 * index, 0).duration(LENGTH).easing(Easing.LINEAR)
              for index, light in enumerate(lights)])

# One template for the whole programme: a picture area inset to the title-safe
# margins over a ticker band along the bottom edge.
frame = L.zones(Zones.rows(["1fr", "72px"], names=["picture", "ticker"], padding=0), within="frame")
safe = frame["picture"].split(Zones.grid(rows=["1fr", "240px"], columns=["1fr", "1fr"],
                                          names=["top", "corner", "band", "spare"], padding=("64px", "96px")))


@component
def lower_third(scene, *, name: str, role: str, accent: str = ORANGE):
    bar = L.box(width="12px", height="fill", background=accent, radius="6px")
    # The caption is a Text of its own, so it can be retyped in place; the
    # card reserves room for the longest caption it will show.
    caption = scene.text(role, size=0.34, color=SILVER)
    copy = L.column(L.box(name, font_size="64px", weight=700, color=WHITE), caption, gap="8px", min_width="780px")
    card = L.row(bar, copy, gap="28px", padding=("24px", "48px", "24px", "28px"), background=GLASS,
                 radius="16px", align="stretch")
    return card, bar, caption


card, bar, caption = lower_third(scene, name="Ana Martínez", role="Director of research")
card.place(safe["band"], anchor="bottom_left")

beacon = L.box(width="24px", height="24px", radius="full", background="#ef4444")
live = L.row(beacon, L.box("LIVE", font_size="40px", weight=700, color=WHITE, letter_spacing="6px"),
             gap="16px", align="center", padding=("12px", "28px"), radius="full", background="#00000099")
live.place(safe["corner"], anchor="top_right")

# The ticker: an orange label and a dark crawl band along the bottom edge. The
# band is also the mask that clips the headlines sliding through it.
label_zone, crawl_zone = frame["ticker"].split(Zones.columns(["240px", "1fr"]))
HEADLINES = "   ·   ".join([
    "Science prize goes to coastal ecology research",
    "Rail line reopens after a year of repairs",
    "City library extends weekend hours",
    "Markets close higher on energy shares",
])
crawl = scene.geometry.rect(crawl_zone.width, crawl_zone.height).fill("#020617").move_to(*crawl_zone.center)
headlines = scene.text(HEADLINES, size=0.32, color=WHITE, wrap=False)
headlines.move_to(crawl_zone.left + 0.4, crawl_zone.center[1], anchor=Anchor.LEFT).clip(crawl)
ticker = scene.geometry.group([
    scene.geometry.rect(label_zone.width, label_zone.height).fill(ORANGE).move_to(*label_zone.center),
    scene.text("NEWS", size=0.32, weight=700, color=WHITE).move_to(*label_zone.center),
    crawl,
    headlines,
])

scene.play([live.animate.fade_in().duration(0.6), ticker.animate.fade_in_from(Direction.DOWN, 0.3).duration(0.6)])
scene.launch(beacon.animate.opacity(0.25).duration(0.5).repeat(14, yoyo=True))
scene.launch(headlines.animate.shift_by(-14, 0).duration(LENGTH - 0.6).easing(Easing.LINEAR))
scene.play([card.animate.fade_in_from(Direction.LEFT, distance=0.8).duration(0.7).easing(Easing.SMOOTH),
            bar.animate.grow_from_edge(Direction.DOWN).duration(0.5)])
scene.wait(1.2)
scene.stop("lower third")

# The story changes: the caption is deleted back and typed again.
scene.play(caption.animate.retype("National Science Prize 2025", cps=26))
caption.fill("#fde68a")
scene.wait(1.2)
scene.stop("new caption")

scene.play(card.animate.fade_out().duration(0.5))
scene.wait(LENGTH - scene.cursor)

if snapshots := os.environ.get("GAANIM_SNAPSHOTS"):
    scene.snapshots(snapshots, [0.3, 0.9, 1.6, 2.7, 3.3, 4.6, 5.6, 7.0])
else:
    scene.render()

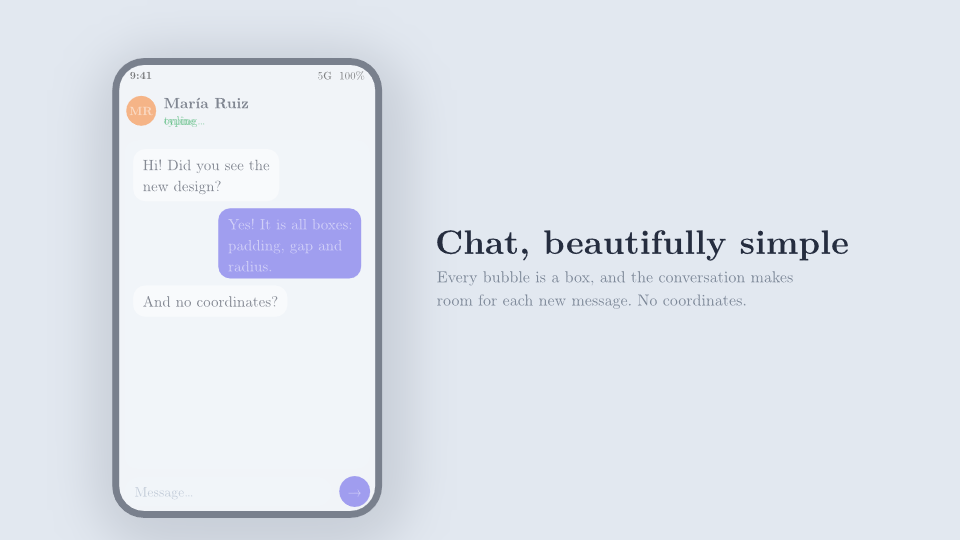

Mobile app

A phone chat app built from boxes: a clipped device, bubbles that wrap and a composer that types.

Mobile app
View on GitHubgaanim examples/showcase/mobile_app.py
Code · 103 lines
"""A phone chat app built from boxes: a clipped device, bubbles that wrap and a composer that types.

The phone is a column of boxes with a border, a radius, a shadow and clipping;
each message is a box whose text wraps inside ``max_width`` and whose
``align_self`` pushes it to its side. A reply is typed into the composer and
sent, then the other person types back: each new bubble makes the column
reflow. Layered boxes (``stack``) hold the composer's placeholder over the
typed text and the presence line's two states, which fade into each other.
"""

import os

from gaanim import BoxStyle, Direction, Scene

scene = Scene(theme="paper", background="#e2e8f0")
L = scene.layout

INK = "#0f172a"
SLATE = "#475569"
HINT = "#94a3b8"
INDIGO = "#4f46e5"
FIELD = "#f1f5f9"

bubble = BoxStyle(padding=("14px", "20px"), radius="24px", font_size="30px", max_width="350px", line_spacing=1.4)
theirs = bubble.but(background="white", color=INK)
mine = bubble.but(background=INDIGO, color="white")


def message(text, *, me=False):
    # align_self pushes a bubble to its side of the column; its text wraps inside max_width.
    return L.box(text, style=mine if me else theirs, align_self="end" if me else "start")


status = L.row(L.box("9:41", font_size="22px", weight=700), L.box("5G  100%", font_size="22px"),
               justify="between", width="fill", padding=("0px", "12px"))
# Two presence states layered in one stack, each anchored to its left edge;
# "typing…" waits with a transparent fill.
GREEN, CLEAR = "#16a34a", "#16a34a00"
online = scene.text("online", size=0.2, color=GREEN)
typing = scene.text("typing…", size=0.2, color=CLEAR)
presence = L.stack(online.item(anchor="left"), typing.item(anchor="left"), width="fill")
header = L.row(
    L.box("MR", font_size="24px", weight=700, color="white", background="#f97316", radius="full",
          width="60px", height="60px", align="center", justify="center"),
    L.column(L.box("María Ruiz", font_size="30px", weight=700, color=INK), presence, gap="4px"),
    gap="16px", align="center", width="fill", padding=("12px", "4px"),
)
chat = L.column(
    message("Hi! Did you see the new design?"),
    message("Yes! It is all boxes: padding, gap and radius.", me=True),
    message("And no coordinates?"),
    gap="14px", width="fill", grow=1, padding="18px", background=FIELD, radius="26px",
)
# The composer's field stacks the placeholder over the reply typed into it.
REPLY = "Not one. Just rows!"
placeholder = scene.text("Message…", size=0.23, color=HINT)
draft = scene.text(REPLY, size=0.23, color=INK)
send = L.box("→", font_size="28px", color="white", background=INDIGO, radius="full", width="62px", height="62px",
             align="center", justify="center")
composer = L.row(
    L.stack(placeholder.item(anchor="left"), draft.item(anchor="left"), grow=1, padding=("14px", "22px"),
            radius="full", background=FIELD),
    send, gap="14px", align="center", width="fill",
)
phone = L.column(status, header, chat, composer, gap="14px", padding=("22px", "24px"),
                 width="540px", height="920px", background="white", radius="64px",
                 border=INK, border_width="14px", clip=True,
                 shadow={"color": "#0f172a40", "y": "-24px", "blur": "56px"})
pitch = L.column(
    L.box("Chat, beautifully simple", font_size="68px", weight=700, color=INK),
    L.box("Every bubble is a box, and the conversation makes room for each new message. No coordinates.",
          font_size="32px", color=SLATE, max_width="720px", line_spacing=1.45),
    gap="22px",
)
page = L.row(phone, pitch, gap="110px", align="center", justify="center", width="fill", height="fill")

scene.play([phone.animate.fade_in_from(Direction.DOWN, distance=0.6).duration(0.8),
            pitch.reveal(each=0.1, duration=0.5)])
scene.wait(0.4)
scene.stop("chat")

# Typing a reply: the placeholder gives way to the typewriter, the reply is
# sent and its bubble joins the conversation.
scene.play(placeholder.animate.opacity(0).duration(0.2))
scene.play(draft.animate.typewriter(cps=20, keep_cursor=False))
scene.play(send.animate.indicate().duration(0.4))
chat.add(message(REPLY, me=True), duration=0.5, advance=False)
scene.play([draft.animate.opacity(0).duration(0.3), placeholder.animate.opacity(1).duration(0.3)])
scene.wait(0.4)

# María types back: her presence line says so until her bubble arrives.
scene.play([online.animate.fill(CLEAR).duration(0.3), typing.animate.fill(GREEN).duration(0.3)])
scene.wait(0.9)
chat.add(message("It looks amazing. Ship it!"), duration=0.5, advance=False)
scene.play([online.animate.fill(GREEN).duration(0.3), typing.animate.fill(CLEAR).duration(0.3)])
scene.wait(1.0)
scene.stop("replies")

if snapshots := os.environ.get("GAANIM_SNAPSHOTS"):
    scene.snapshots(snapshots, [0.4, 1.6, 2.4, 2.8, 3.3, 4.2, 4.8, 5.8])
else:
    scene.render()

Quiz night

A live trivia played in teams: a room the audience smashes into, polls and quizzes from Markdown, reveals with confetti, a tug of war, a score race and a podium.

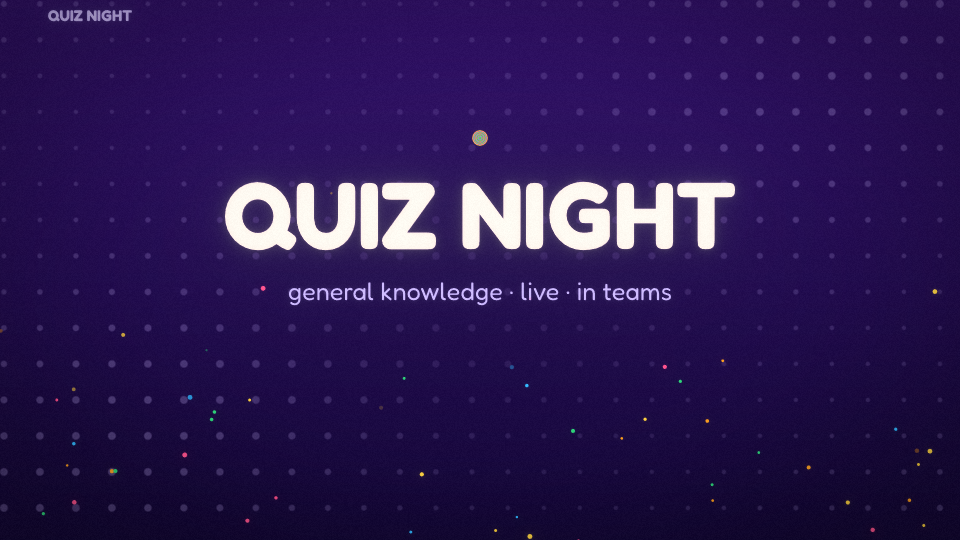

Quiz night
View on GitHubgaanim examples/showcase/trivia/main.pyDesktop app only
Code · 586 lines
"""Quiz Night: a live general-knowledge trivia played in teams.

Present it with `gaanim --present .` and let the audience scan the code. Each
player picks a team on their phone, builds a character and smashes into the
screen before landing on their team's side. The questions come from
`questions.md`: an icebreaker poll and quizzes with images and multiple
answers. When an answer is revealed the characters run to the one they
chose, and the game ends with a tug of war between the teams, a score race
and the podium.

In the preview and in exports a made-up class plays (`scene.rehearsal`): it
joins, picks teams, answers and competes the same way every time, so the
whole game can be designed without phones. Live zones (`scene.live_zone`)
take plain Python functions that are compiled when the scene is built, so
the exported `.gaanim` runs them without Python.
"""

import math
import os

from gaanim import (
    Background,
    Emitter,
    PostProcess,
    Scene,
    Theme,
    Transition,
    load_questions,
    magic_move,
)
from gaanim.live import (
    STEP,
    anticipate,
    ease_in,
    ease_in_out,
    ease_out_back,
    impact,
    lerp,
    pose,
    progress,
    smoothstep,
    spring,
    state,
    wobble,
)

INK = "#1c0b3f"
SEA = "#4a2a8c"
WHITE = "#fff8ff"
MUTED = "#cbb8ff"
GOLD = "#ffd23f"
NEON = ["#ff4f8b", "#2fb8ff", "#ff9f1c", "#2ed47a"]
TEAM_COLORS = ["#2fb8ff", "#ff9f1c"]
# Sounds by Kenney (www.kenney.nl, CC0): Interface Sounds and Music Jingles.
TITLE, SLIDE, SHRINK, TILE, POP, QUESTION, RIGHT, FACT, PODIUM = (
    f"assets/sounds/{name}.ogg"
    for name in ("title", "transition", "shrink", "tile", "pop", "question", "correct", "fact", "podium")
)

# Background: a regular grid of lavender dots sliding diagonally over a
# violet gradient. A soft wave swells the dots as it passes, and the center
# stays calmer so the text reads.
DOTS = r"""
fn gaanim_background(uv: vec2<f32>, resolution: vec2<f32>, time: f32) -> vec4<f32> {
    let frame = gaanim_frame_size(resolution);
    let pixel = frame.y / resolution.y;
    let spacing = 0.6;
    // The grid drifts up and to the right.
    let p = uv * frame - vec2<f32>(0.35, 0.35) * time;
    let local = p - (floor(p / spacing) + 0.5) * spacing;
    let wave = 0.5 + 0.5 * sin((uv.x + uv.y) * 5.0 - time * 1.2);
    let r = 0.035 + 0.03 * wave;
    let cover = 1.0 - smoothstep(r - pixel, r + pixel, length(local));
    let top = vec3<f32>(0.20, 0.07, 0.42);
    let bottom = vec3<f32>(0.08, 0.03, 0.22);
    var color = mix(top, bottom, uv.y);
    let calm = 0.35 + 0.65 * smoothstep(0.1, 0.7, length((uv - 0.5) * vec2<f32>(1.6, 1.0)));
    color = mix(color, vec3<f32>(0.80, 0.72, 1.0), cover * (0.16 + 0.14 * wave) * calm);
    return vec4<f32>(color, 1.0);
}
"""

# Fredoka (Google Fonts, OFL license in assets/fonts): round and playful.
FONTS = Theme(font_dir="assets/fonts", fonts={"text": "Fredoka"})
scene = Scene(background=Background.shader(DOTS, fallback=INK), theme=FONTS)
# Post-processing: the neon colors glow, the corners darken a little and a
# fine grain adds texture.
scene.canvas.post = [
    PostProcess.bloom(threshold=0.72, intensity=0.45, radius=0.4),
    PostProcess.vignette(0.3),
    PostProcess.grain(0.025),
]
# Two teams that each player picks on their phone.
teams = scene.teams(["Owls", "Larks"], choose=True, colors=TEAM_COLORS)
# Outside a live presentation, a made-up class of 18 students joins, picks
# teams, answers and competes: the Owls know a little more.
scene.rehearsal(18, seed=7, skill=[0.7, 0.55])
audience = scene.audience()
board = scene.leaderboard()
questions = load_questions("questions.md")
quizzes = sum(1 for q in questions if q.is_quiz)


def logo():
    """The corner mark: magic move keeps it still between segments."""
    return scene.text("QUIZ NIGHT", size=0.26, color=MUTED, weight=700).move_to(-6.5, 4.15).named("logo")


def team_scores():
    """The team scoreboard, at the bottom on each side."""
    for team, x in [(0, -5.6), (1, 5.6)]:
        pill = scene.geometry.rounded_rect(3.6, 0.6, 0.3).fill(teams.colors[team]).no_stroke()
        pill.opacity(0.25).move_to(x, -4.15).named(f"team{team}")
        scene.viz.readout(teams.score(team), format=".0f", prefix=f"{teams.names[team]}  ",
                          suffix=" pts", color=WHITE, font_size=0.28).move_to(x, -4.15)


# --- Cover: the title drops in with a bounce and a comet circles it ------------------
scene.segment("Cover", notes="Welcome. Advance to open the room.")
logo()
title = scene.text("QUIZ NIGHT", size=1.5, color=WHITE, weight=700).move_to(0, 6.9).named("title")
subtitle = scene.text("general knowledge · live · in teams", size=0.42, color=MUTED).move_to(0, -0.5)
# Sparks rise from the bottom edge for the whole cover.
scene.fx.particles(Emitter.rect(16, 0.1).at((0, -4.7)), rate=14, lifetime=(3, 5), speed=(0.6, 1.4),
                   direction=math.pi / 2, spread=0.4, size=(0.04, 0.09), flutter=0.25,
                   color=NEON + [GOLD], seed=3)
# The comet: a dot that travels and a tail of delayed followers.
comet = scene.geometry.circle(0.13).fill(GOLD).no_stroke().move_to(-9, 3.2)
tail = []
for i in range(12):
    dot = scene.geometry.circle(0.12 * (1 - i / 13)).fill(NEON[i % 4]).no_stroke()
    tail.append(dot.follow(comet, delay=0.035 * (i + 1)))

scene.play([title.animate.move_to(0, 0.9, anchor="center").duration(0.55)
            .settle(overshoot=0.18, frequency=2.5, decay=5)
            .sound(TITLE)])
scene.play([subtitle.animate.typewriter(cps=40, cursor=None)]
           + [dot.animate.fade_in().duration(0.05) for dot in tail])
for x, y in [(-3, 2.4), (4.5, 1.9), (6.2, -1.2), (0, -2.2), (-6, -1.0), (-7.5, 2.6)]:
    scene.play([comet.animate.move_to(x, y).duration(0.45)])
scene.play([comet.animate.move_to(0, 2.2).duration(0.5).settle(overshoot=0.25, frequency=3, decay=4)])
scene.play([title.animate.indicate().duration(0.6).sound(POP)])
scene.stop("cover")


# --- Room: the characters smash into the screen and land with their team -------------
SIZE = 1.0  # height of a character in its seat
BIG = 6.5  # size when it hits the glass
FLY, STUCK, FALL = 0.55, 0.45, 0.8  # seconds: toward the camera, stuck, falling
LAND = FLY + STUCK + FALL


def side(p):
    """-1 for the first team (left), 1 for the second."""
    return -1 if p.team == 0 else 1


def seat(p):
    """Where it stands: rows of four on its team's side."""
    column, row = p.team_index % 4, p.team_index // 4
    return side(p) * (2.7 + column * 1.3), 0.9 - (row % 4) * 1.35


def feet(center_y, scale):
    """The feet of a character centered at ``center_y`` at that scale."""
    return center_y - SIZE * scale / 2


def smash(p):
    x, y = seat(p)
    # Where it hits the glass: near the center, different for every player.
    hit_x = -2.5 + 5 * p.random(1)
    hit_y = -0.3 + 1.6 * p.random(2)
    spin = 1 if p.random(3) < 0.5 else -1
    t = p.t

    if t < FLY:
        # It comes from far away, small, spinning straight at the camera.
        u = ease_in(t / FLY)
        scale = lerp(0.1, BIG, u)
        cx, cy = lerp(0.2 * hit_x, hit_x, u), lerp(0.2 * hit_y + 0.8, hit_y, u)
        return pose(cx, feet(cy, scale), scale=scale, rotation=spin * 2 * math.pi * (1 - u),
                    express="surprised", since=0, show_name=False)

    if t < FLY + STUCK:
        # Splat! Squashed against the glass, it slides down a little.
        stuck = t - FLY
        sx, sy = impact(stuck, amount=0.4, frequency=3, decay=5)
        cy = hit_y - 0.9 * stuck * stuck
        return pose(hit_x, feet(cy, BIG), scale=BIG, sx=sx * 1.08, sy=sy * 0.95,
                    rotation=wobble(stuck, amount=0.08, frequency=4), express="hurt", since=FLY,
                    show_name=False)

    if t < LAND:
        # It peels off and falls toward its team's side, shrinking.
        u = (t - FLY - STUCK) / FALL
        scale = lerp(BIG, 1, ease_in_out(u))
        start_y = hit_y - 0.9 * STUCK * STUCK
        cx = lerp(hit_x, x, smoothstep(u))
        cy = lerp(start_y, y + SIZE / 2, ease_in(u)) + 1.2 * math.sin(math.pi * u)
        return pose(cx, feet(cy, scale), scale=scale, rotation=spin * 0.5 * math.sin(2 * math.pi * u),
                    express="hurt", since=FLY, show_name=False)

    # In its seat: it bounces as it lands, cheers up and looks to the center.
    sx, sy = impact(t - LAND, amount=0.35)
    glance = -side(p) * (0.6 + 0.4 * math.sin(0.6 * t + 6 * p.random(4)))
    return pose(x, y, sx=sx, sy=sy, express="happy", since=LAND, look_x=glance, look_y=0.2)


scene.segment("Room", transition=Transition.magic_move(0.9, key="name", sound=SLIDE),
              notes="Wait for everyone to join and pick a team; advance when they are all in.")
logo()
scene.text("QUIZ NIGHT", size=0.62, color=WHITE, weight=700).move_to(0, 3.95).named("title")
card = scene.geometry.rounded_rect(3.0, 3.0, 0.3).fill(WHITE).no_stroke().move_to(0, 1.75)
qr = audience.qr(2.6).fill(INK).move_to(0, 1.75)
code = scene.text(audience.code, size=0.75, color=GOLD, weight=700).move_to(0, -0.25)
url = scene.text(audience.url.split("//")[-1], size=0.22, color=MUTED).move_to(0, -0.8)
count = scene.viz.readout(audience.count(), format=".0f", suffix=" in the room", color=WHITE,
                          font_size=0.3).move_to(0, -1.3)
headers = []
for team, x in [(0, -4.65), (1, 4.65)]:
    name = scene.text(teams.names[team], size=0.62, color=teams.colors[team], weight=700).move_to(x, 3.3)
    players = scene.viz.readout(teams.players(team), format=".0f", suffix=" players", color=MUTED,
                                font_size=0.26).move_to(x, 2.7)
    headers += [name, players]

scene.play([card.animate.grow_from_center().duration(0.5).settle(), qr.animate.fade_in().duration(0.5)])
scene.play([code.animate.fade_in(), url.animate.fade_in(), count.animate.fade_in()]
           + [piece.animate.fade_in().delay(0.1 * i) for i, piece in enumerate(headers)])
scene.live_zone(audience, smash, size=SIZE, squash=0.0, lean=0.0, names=True, name_size=0.2,
                name_color=WHITE)
scene.wait(9)
scene.stop("room")


# --- Questions -----------------------------------------------------------------------
COLUMNS = (-5.7, -1.9, 1.9, 5.7)  # answer columns at the reveal
ROW_Y = 1.75  # height of the answer row at the reveal


def gather(p, quiz):
    """Each character runs under the answer it chose; in a quiz, those who
    got it right jump and the others sulk."""
    if p.answer < 0:
        # No answer: it stays sad in the corner.
        return pose(-7.3 + 0.35 * (p.index % 6), -3.95, scale=0.6, lean=0.25, express="sad", loop=True,
                    show_name=False)
    x = COLUMNS[0] + (COLUMNS[1] - COLUMNS[0]) * p.answer + 2.6 * (p.random(5) - 0.5)
    y = -0.5 - 2.6 * p.random(6)
    start_x = 16 * p.random(7) - 8
    wait = 0.5 * p.random(8)
    run = progress(p.t, wait, wait + 0.75)
    cx = lerp(start_x, x, ease_out_back(run))
    cy = lerp(-6, y, smoothstep(run)) + 1.0 * math.sin(math.pi * run)
    landed = p.t - wait - 0.75
    if landed < 0:
        return pose(cx, cy, scale=0.85, express="surprised", since=0, show_name=False)
    if quiz and p.answer_points > 0:
        # Right! It jumps again and again, higher on a long streak.
        beat = (landed + p.random(9)) % 0.8
        hop = (0.35 + 0.1 * min(p.streak, 4)) * 4 * (beat / 0.8) * (1 - beat / 0.8)
        return pose(x, y + hop, scale=0.85, express="winner", loop=True, show_name=False)
    if quiz:
        sx, sy = impact(landed, amount=0.4)
        return pose(x, y, scale=0.85, sx=sx * 1.05, sy=sy * 0.9, lean=0.12 * side(p), express="sad",
                    since=0.75 + wait, show_name=False)
    sx, sy = impact(landed, amount=0.3)
    return pose(x, y, scale=0.85, sx=sx, sy=sy, express="happy", since=0.75 + wait, show_name=False,
                look_y=0.8)


def gather_quiz(p):
    return gather(p, True)


def gather_poll(p):
    return gather(p, False)


def tile(poll, index, width, height, label_size):
    """An answer with the color and icon it has on the phone, as a named group."""
    color = poll.color(index)
    box = scene.geometry.rounded_rect(width, height, min(0.3, height / 3)).fill(color).no_stroke()
    badge_x = -width / 2 + height * 0.5
    badge = scene.geometry.circle(height * 0.32).fill(WHITE).no_stroke().move_to(badge_x, 0)
    icon = poll.icon(index, height * 0.36).move_to(badge_x, 0)
    # Long answers shrink to fit their tile (Fredoka is about 0.55 of its
    # size per letter).
    room = width - height * 1.25
    text = poll.options[index]
    size = min(label_size, room / (0.55 * len(text)))
    label = scene.text(text, size=size, color=WHITE, weight=700, text_box="cap")
    label.move_to(badge_x + height * 0.45 + (width - height * 0.95) / 2, 0)
    return scene.geometry.group([box, badge, icon, label]).named(f"a{index}")


def kicker_text(q, number):
    if not q.is_quiz:
        return "POLL · PICK AS MANY AS YOU LIKE" if q.multiple else "POLL"
    head = f"QUESTION {number} OF {quizzes}"
    return head + " · PICK EVERY RIGHT ANSWER" if q.multiple else head


def question_slide(q, number):
    poll = scene.question(q)
    logo()
    team_scores()
    has_image = q.image is not None
    kicker = scene.text(kicker_text(q, number), size=0.26, color=GOLD if q.multiple else MUTED, weight=700)
    kicker.move_to(-0.6, 3.75)
    question = scene.text(q.text, size=0.56, color=WHITE, weight=700, wrap=12.0, text_align="center")
    question.move_to(-0.6, 3.0)
    timer = []
    if poll.is_quiz:
        ring = scene.geometry.annulus(0.75, 0.64).fill(SEA).no_stroke().move_to(6.9, 3.15)
        clock = scene.viz.readout(poll.remaining(), format=".0f", color=GOLD, font_size=0.6).move_to(6.6, 3.15)
        timer = [ring, clock]
    answered = scene.viz.readout(poll.total(), format=".0f", suffix=" answered", color=MUTED,
                                 font_size=0.26).move_to(0, -3.45)
    join = scene.text(f"Late? Join with {poll.code}", size=0.22, color=MUTED).move_to(0, -3.85)

    tiles = []
    for index in range(len(q.options)):
        if has_image:
            group = tile(poll, index, 7.4, 1.0, 0.42).move_to(-3.7, 1.55 - index * 1.2)
        else:
            group = tile(poll, index, 7.5, 1.9, 0.56).move_to(-3.95 + (index % 2) * 7.9,
                                                              0.95 - (index // 2) * 2.25)
        tiles.append(group)
    before = scene.geometry.group(tiles)
    picture = None
    if has_image:
        image = scene.media.image(q.image, width=6.6, height=3.9).move_to(3.95, -0.25)
        border = scene.geometry.rounded_rect(6.8, 4.1, 0.15).no_fill().stroke(WHITE, 0.06).move_to(3.95, -0.25)
        picture = scene.geometry.group([image, border])

    scene.play([kicker.animate.fade_in().sound(QUESTION, volume=0.7),
                question.animate.typewriter(cps=40, cursor=None)])
    entrance = [group.animate.grow_from_center().duration(0.4).delay(0.08 * index).settle(overshoot=0.08)
                .sound(TILE, volume=0.8) for index, group in enumerate(tiles)]
    if picture is not None:
        entrance.append(picture.animate.fade_in().duration(0.5))
    scene.play(entrance + [answered.animate.fade_in(), join.animate.fade_in()]
               + [piece.animate.fade_in() for piece in timer])

    if poll.is_quiz:
        # It moves on by itself once everyone answered or time is up.
        scene.stop("answering", until=poll.answered(share=1.0) | poll.time_up())
        poll.reveal()
    else:
        scene.stop("voting", until=poll.answered(share=1.0))

    # The answers shrink into a row at the top: magic move by name.
    row = [tile(poll, index, 3.5, 0.9, 0.3).move_to(COLUMNS[index], ROW_Y)
           for index in range(len(q.options))]
    after = scene.geometry.group(row)
    leaving = [answered.animate.fade_out(), join.animate.fade_out()]
    leaving += [piece.animate.fade_out() for piece in timer]
    if picture is not None:
        leaving.append(picture.animate.fade_out().duration(0.4))
    scene.play([magic_move(before, after, key="name").duration(0.8).sound(SHRINK)] + leaving)

    # Bars with the votes under each answer.
    reveal = []
    for index in range(len(q.options)):
        bar = poll.bar(index, length=2.6, thickness=0.14, radius=0.07, scale="total")
        bar.fill(WHITE).no_stroke().move_to(COLUMNS[index] - 0.35, ROW_Y - 0.7)
        votes = scene.viz.readout(poll.votes(index), format=".0f", color=WHITE, font_size=0.28)
        votes.move_to(COLUMNS[index] + 1.4, ROW_Y - 0.7)
        reveal += [bar.animate.create().duration(0.7), votes.animate.fade_in()]

    right = poll.correct if poll.is_quiz else None
    right = [] if right is None else ([right] if isinstance(right, int) else list(right))
    for index, group in enumerate(row):
        if right and index not in right:
            reveal.append(group.animate.opacity(0.25).duration(0.4))
        elif right:
            glow = group.animate.glow(poll.color(index), radius=0.4, intensity=1.3).duration(0.5)
            reveal.append(glow.sound(RIGHT) if index == right[0] else glow)
    scene.play(reveal)
    if right:
        # Confetti from every right answer, with a pop!
        bursts = []
        for k, index in enumerate(right):
            confetti = scene.fx.confetti((COLUMNS[index], ROW_Y + 0.3), count=0, seed=11 * number + index,
                                         speed=(4, 7), spread=0.8)
            bursts.append(confetti.animate.burst(70).duration(0.3).delay(0.12 * k).sound(POP, volume=0.8))
        scene.play(bursts + [row[index].animate.indicate().duration(0.6) for index in right])
    scene.live_zone(audience, gather_quiz if poll.is_quiz else gather_poll, size=SIZE, squash=0.03,
                    lean=0.05)
    if right:
        leader = board.name(0, size=0.26, weight=700).fill(GOLD).move_to(0, -3.75)
        lead_points = scene.viz.readout(board.points(0), format=".0f", prefix="leads with ",
                                        suffix=" pts", color=MUTED, font_size=0.22).move_to(0, -4.2)
        scene.play([leader.animate.fade_in().delay(1.2), lead_points.animate.fade_in().delay(1.2)])
    scene.wait(3)
    scene.stop("answer")


# --- Fact: the skyscraper race -----------------------------------------------------
# Architectural heights in meters, by the year each building was finished.
# A name missing from a year counts as 0 (the Twin Towers, from 2001).
# 2020 repeats 2015 so the last overtake finishes.
TOWERS = {
    1930: {"Chrysler": 319},
    1931: {"Chrysler": 319, "Empire State": 381},
    1972: {"Chrysler": 319, "Empire State": 381, "Twin Towers": 417},
    1974: {"Chrysler": 319, "Empire State": 381, "Twin Towers": 417, "Willis": 442},
    1998: {"Chrysler": 319, "Empire State": 381, "Twin Towers": 417, "Willis": 442, "Petronas": 452},
    2001: {"Chrysler": 319, "Empire State": 381, "Willis": 442, "Petronas": 452},
    2004: {"Empire State": 381, "Willis": 442, "Petronas": 452, "Taipei 101": 508},
    2010: {"Willis": 442, "Petronas": 452, "Taipei 101": 508, "Burj Khalifa": 828},
    2012: {"Petronas": 452, "Taipei 101": 508, "Abraj Al-Bait": 601, "Burj Khalifa": 828},
    2014: {"Taipei 101": 508, "One WTC": 541, "Abraj Al-Bait": 601, "Burj Khalifa": 828,
           "Petronas": 452},
    2015: {"Taipei 101": 508, "One WTC": 541, "Abraj Al-Bait": 601, "Shanghai Tower": 632,
           "Burj Khalifa": 828},
    2020: {"Taipei 101": 508, "One WTC": 541, "Abraj Al-Bait": 601, "Shanghai Tower": 632,
           "Burj Khalifa": 828},
}


def towers_slide():
    scene.segment("Skyscrapers", transition=Transition.magic_move(0.7, key="name", sound=SLIDE),
                  notes="How the height record kept being broken.")
    logo()
    team_scores()
    scene.text("How the record grew", size=0.6, color=WHITE, weight=700).move_to(0, 3.75)
    scene.text("the tallest buildings in the world, in meters", size=0.28, color=MUTED).move_to(0, 3.15)
    race = scene.viz.bar_race(TOWERS, top=5, rank_smoothing=0.5, value_format="{:,.0f} m", width=12.5,
                              height=5.6, colors=NEON + [GOLD, "#b48cff"], label_color=WHITE,
                              ticker_color=GOLD).move_to(0, -0.6)
    scene.play([race.animate.play().duration(10)])
    scene.media.sfx(FACT)
    scene.wait(1)
    scene.stop("skyscrapers")


number = 0
for q in questions:
    if q.is_quiz:
        number += 1
    scene.segment(q.text if len(q.text) < 40 else q.text[:37] + "…",
                  transition=Transition.magic_move(0.6, key="name", sound=SLIDE),
                  notes=q.notes or "Advance to reveal the answer.")
    question_slide(q, number)
    if q.text.startswith("Which is the tallest building"):
        towers_slide()


# --- Tug of war: the team ahead pulls --------------------------------------------------
PULL = 1.4  # how far the team ahead drags the rope


def tug(p):
    column, row = p.team_index % 5, p.team_index // 5
    x, y = side(p) * (1.6 + column * 0.95), -0.6 - (row % 3) * 1.25
    ahead = p.team_rank == 0
    shift = PULL * ease_out_back(min(p.time / 1.2, 1)) * (1 if ahead else -1)
    heave = 0.15 * math.sin(2 * math.pi * (p.t * 1.4 + p.team_index * 0.13))
    return pose(x + side(p) * (shift + heave), y + 0.6, lean=side(p) * 0.25, flip=side(p) > 0,
                express="winner" if ahead else "hurt", loop=True)


scene.segment("Tug of war", transition=Transition.magic_move(0.7, key="name", sound=SLIDE),
              notes="The team ahead pulls the rope.")
logo()
team_scores()
scene.text("Owls against Larks!", size=0.7, color=WHITE, weight=700).move_to(0, 3.6)
rope = scene.geometry.rect(15, 0.12).fill("#c89b6d").no_stroke().move_to(0, 0.4)
for team, x in [(0, -4.5), (1, 4.5)]:
    teams.bar(team, length=5.5, thickness=0.35, radius=0.17,
              direction="left" if team == 0 else "right").fill(teams.colors[team]).no_stroke().move_to(x, 2.5)
    scene.viz.readout(teams.average(team), format=".0f", suffix=" pts per player",
                      color=MUTED, font_size=0.28).move_to(x, 1.9)
scene.play([rope.animate.create().duration(0.6).sound(SLIDE)])
scene.live_zone(audience, tug, size=0.9, lean=0.0)
scene.wait(5)
scene.stop("tug")


# --- Race: the characters run along their scores -----------------------------------
LANES = 5
LANE_TOP, LANE_STEP = 2.3, 1.3
TRACK_START, TRACK_LENGTH = -5.2, 10.4


def lane_y(rank):
    return LANE_TOP - rank * LANE_STEP


def count_up(p):
    """The score each one shows climbs toward the real one (state kept between frames)."""
    return state(shown=p.state.shown + (p.score - p.state.shown) * min(1, 2.5 * STEP))


def race(p):
    # Changing lanes overshoots a little and settles.
    y = lerp(lane_y(p.previous_rank), lane_y(p.rank), ease_out_back(p.rank_since / 0.6))
    target = TRACK_START + TRACK_LENGTH * p.state.shown / max(p.leader, 1)
    x = lerp(TRACK_START - 1.2, target, spring(p.t, frequency=0.9, damping=0.45))
    stride = abs(math.sin(2 * math.pi * 1.6 * p.t))
    y += 0.16 * stride
    sx, sy = 1.06 - 0.06 * stride, 0.94 + 0.08 * stride
    mood = None
    if p.streak >= 3:
        mood = "winner"  # on a streak
    elif p.rank == 0:
        mood = "happy"
    return pose(x, y, sx=sx, sy=sy, express=mood, loop=True, visible=p.rank < LANES)


scene.segment("Race", transition=Transition.magic_move(0.7, key="name", sound=SLIDE), notes="The scores so far.")
logo()
team_scores()
scene.text("The race so far", size=0.6, color=WHITE, weight=700).move_to(0, 3.9)
for rank in range(LANES):
    y = lane_y(rank)
    scene.geometry.rect(TRACK_LENGTH + 0.6, 0.07).fill(SEA).no_stroke().move_to(
        TRACK_START + TRACK_LENGTH / 2, y - 0.04)
    board.name(rank, size=0.28, weight=700).fill(MUTED).move_to(-6.9, y + 0.35)
    scene.viz.readout(board.points(rank), format=".0f", color=GOLD, font_size=0.28).move_to(6.0, y + 0.35)
    scene.viz.readout(board.streak(rank), format=".0f", prefix="streak ", color=MUTED,
                      font_size=0.2).move_to(7.2, y + 0.35)
scene.live_zone(audience, race, size=0.85, squash=0.02, lean=0.06, state={"shown": 0.0},
                update=count_up)
scene.wait(5)
scene.stop("race")


# --- Podium: the winner jumps for joy and confetti rains -----------------------------
PLACES = ((0.0, 0.2), (-3.6, -0.8), (3.6, -1.4))
JUMP = 1.3


def podium(p):
    if p.rank == 0:
        x, y = PLACES[0]
        beat = p.t % JUMP
        crouch, air = 0.35, 0.55
        sx, sy = anticipate(beat, at=crouch, amount=0.3, duration=crouch)
        height = 0.0
        if crouch <= beat < crouch + air:
            u = (beat - crouch) / air
            height = 1.1 * 4 * u * (1 - u)
        elif beat >= crouch + air:
            sx, sy = impact(beat - crouch - air, amount=0.35)
        return pose(x, y + height, sx=sx, sy=sy, scale=1.4, express="winner", loop=True)
    if p.rank < len(PLACES):
        x, y = PLACES[p.rank]
        sway = 0.08 * math.sin(2 * math.pi * p.t / 1.3)
        return pose(x, y, scale=1.3, lean=sway, look_x=-x / abs(x), look_y=0.6)
    column = (p.rank - 3) % 8
    x = -6.3 + column * 1.8
    sway = 0.1 * math.sin(2 * math.pi * (p.t / 1.6 + column / 8))
    return pose(x, -4.0, scale=0.7, lean=sway, look_x=-x / 4, look_y=1)


scene.segment("Podium", transition=Transition.magic_move(0.7, key="name", sound=SLIDE),
              notes="Congratulate the top three and the winning team!")
logo()
heading = scene.text("Quiz champions!", size=0.7, color=WHITE, weight=700).move_to(0, 3.9)
medals = (GOLD, "#d7dbe8", "#e39b5f")
steps = []
for rank, ((x, y), height) in enumerate(zip(PLACES, (3.6, 2.6, 2.0))):
    block = scene.geometry.rect(2.8, height).fill(medals[rank]).no_stroke().move_to(x, y - height / 2)
    name = board.name(rank, size=0.36, weight=700).fill(INK).move_to(x, y - 0.5)
    points = scene.viz.readout(board.points(rank), format=".0f", suffix=" pts", color=INK,
                               font_size=0.3).move_to(x - 0.5, y - 1.0)
    steps.append(scene.geometry.group([block, name, points]).shift_by(0, -8))
scene.play([step.animate.shift_by(0, 8).duration(0.6).delay(0.2 * (2 - rank)).settle(overshoot=0.1)
            .sound(POP, volume=0.7) for rank, step in enumerate(steps)])
scene.live_zone(audience, podium, size=1.1)
confetti = scene.fx.confetti((0, -4.6), count=0, seed=21, spread=1.2, speed=(8, 12))
scene.play([confetti.animate.burst(110).duration(1.2).repeat(3).sound(POP, volume=0.6),
            heading.animate.indicate().duration(0.6).sound(PODIUM)])
scene.wait(3)
scene.stop("podium")

if snapshots := os.environ.get("GAANIM_SNAPSHOTS"):
    # The rehearsal at the cover, the room, a poll, a quiz with a picture and
    # its reveal, the skyscraper race, the tug of war, the race and the podium.
    scene.snapshots(snapshots, [7.9, 19.6, 27.1, 50.5, 58.3, 100.5, 147.6, 152.6, 161.1])
else:
    scene.render()
